OPNsense Inter-VLAN Communication Rules

Define and validate intentional cross-VLAN access based on business logic and segmentation policy.

Tools Used

Steps Taken

  1. Opened Firewall → Rules for each VLAN interface.
  2. Created allow rules for:
    • Workstations → Servers
    • Management → All VLANs
    • Servers → APInfra
  3. Ensured each interface ends with a block-all rule with logging enabled.
  4. Applied changes and verified rule order.
  5. Validated allowed paths using ping and service tests.
  6. Generated intentional blocked traffic to confirm segmentation enforcement.

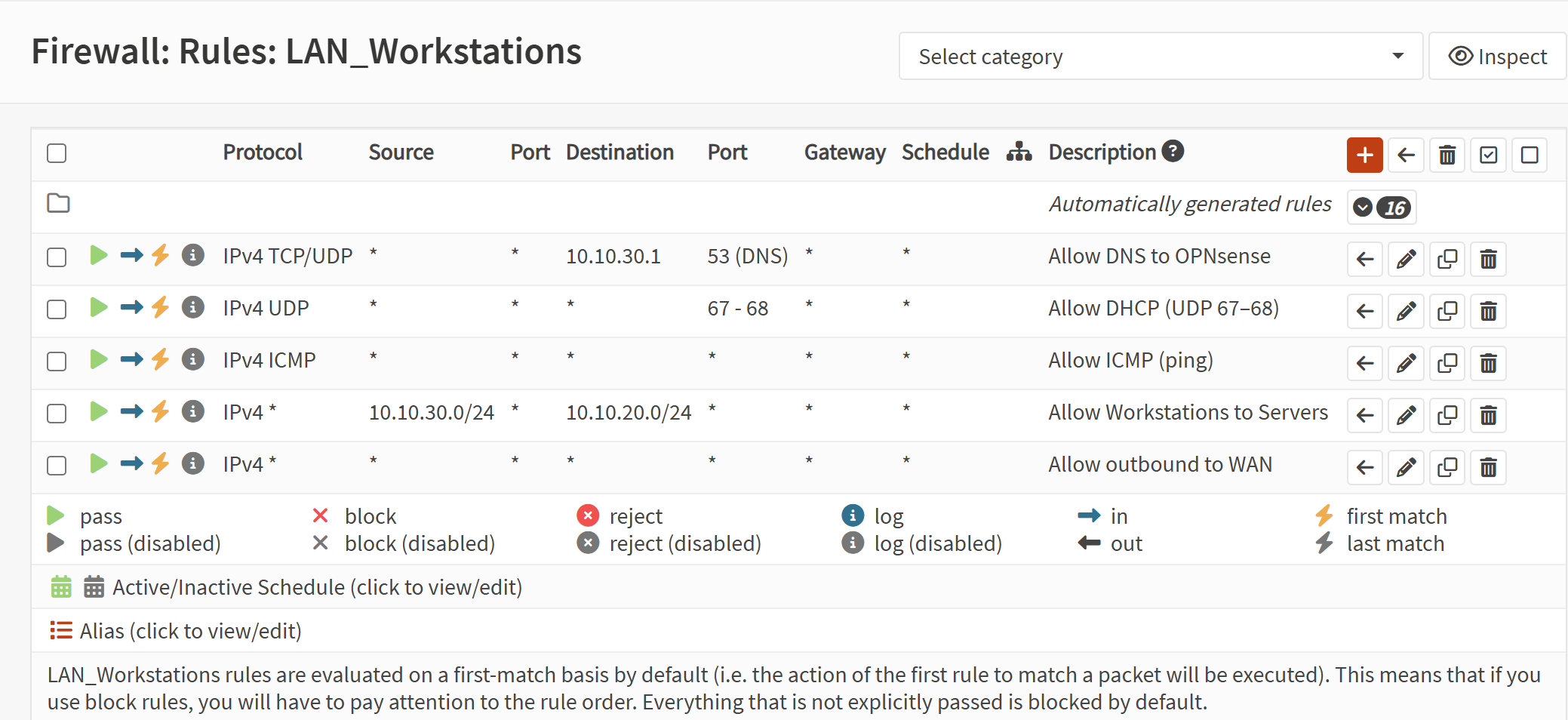

Screenshot: Workstations VLAN Rules

Firewall rules for Workstations VLAN
Click to view full-size: Workstations VLAN allowed to reach Servers only.

Screenshot: Management VLAN Rules

Firewall rules for Management VLAN
Click to view full-size: Management VLAN allowed to reach all VLANs.

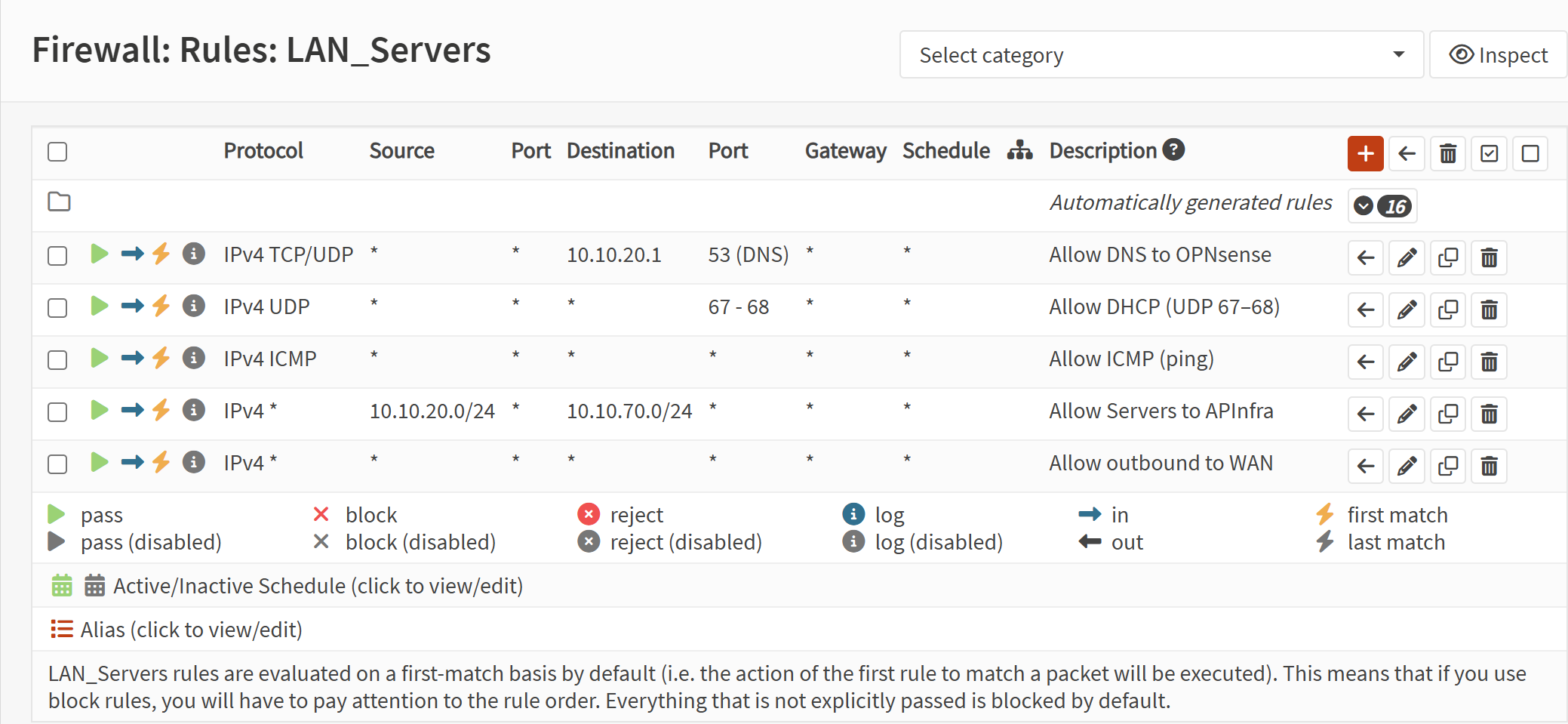

Screenshot: Servers VLAN Rules

Firewall rules for Servers VLAN
Click to view full-size: Servers VLAN allowed to reach APInfra only.

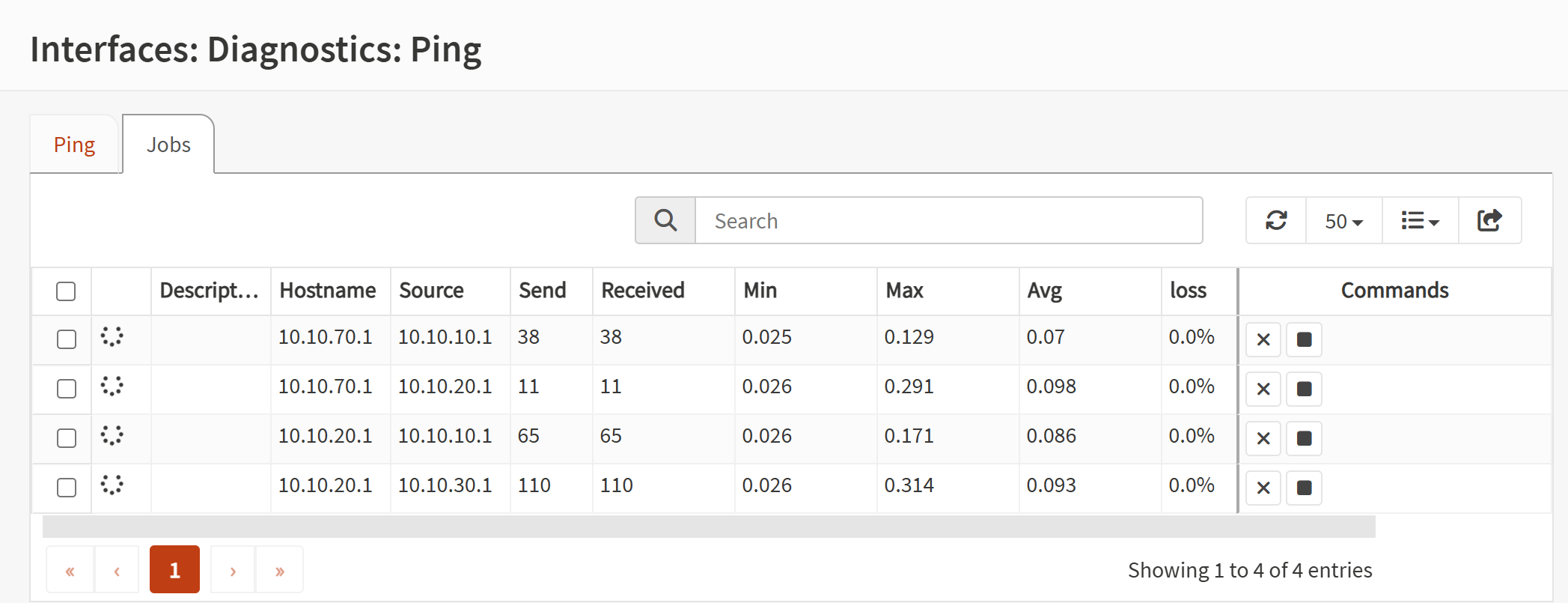

Screenshot: Allowed Communication Tests

Ping and connectivity tests for allowed paths
Click to view full-size: Successful pings for allowed inter-VLAN communication.

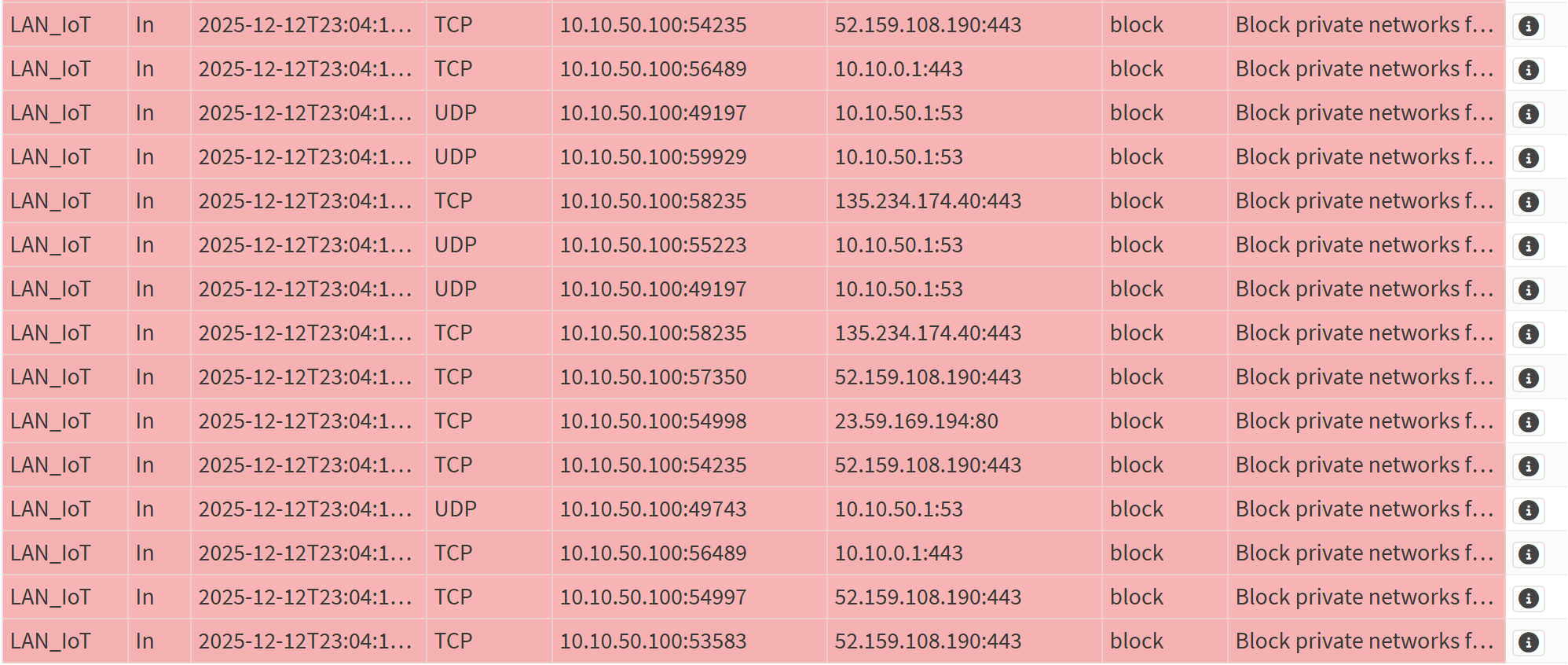

Screenshot: Blocked Traffic Logs

Firewall logs showing blocked inter-VLAN traffic
Click to view full-size: Blocked attempts between disallowed VLANs.

Outcome

This lab establishes intentional, policy-driven inter-VLAN communication. Workstations can reach servers, management can reach all VLANs, and servers can reach APInfra. All other cross-VLAN traffic is explicitly blocked and logged. Validation confirmed that allowed paths function correctly while unauthorized attempts are denied and visible in the firewall logs. This enforces a clean, business-aligned segmentation model.
