BitLocker Automation via Intune

Challenge

Encrypt cloud-native and co-managed Windows devices using Microsoft Intune, ensuring compliance and recovery key protection without user disruption. The solution needed to support both Entra-joined and hybrid-joined devices enrolled via Intune or SCCM co-management.

Tools & Technologies

• Microsoft Intune (Endpoint Security)
• Microsoft Entra Security Groups
• Co-management with Configuration Manager (SCCM)

Implementation & Environment

Depending on the device type, we used a Disk Encryption policy from Intune’s Endpoint Security tab. This policy functions similarly to an ADMX-backed GPO, defining encryption methods and enforcement for OS, fixed, and removable drives.

Steps:

1. Create a Disk Encryption policy in Intune.
2. Assign the policy to a Microsoft Entra device group.
3. Cloud-only devices receive and apply the policy automatically.
4. For hybrid-joined or co-managed devices:
   • Ensure the device is enrolled in Intune or co-managed via SCCM.
   • Switch the Endpoint Protection workload to Intune in SCCM to allow BitLocker settings to apply.

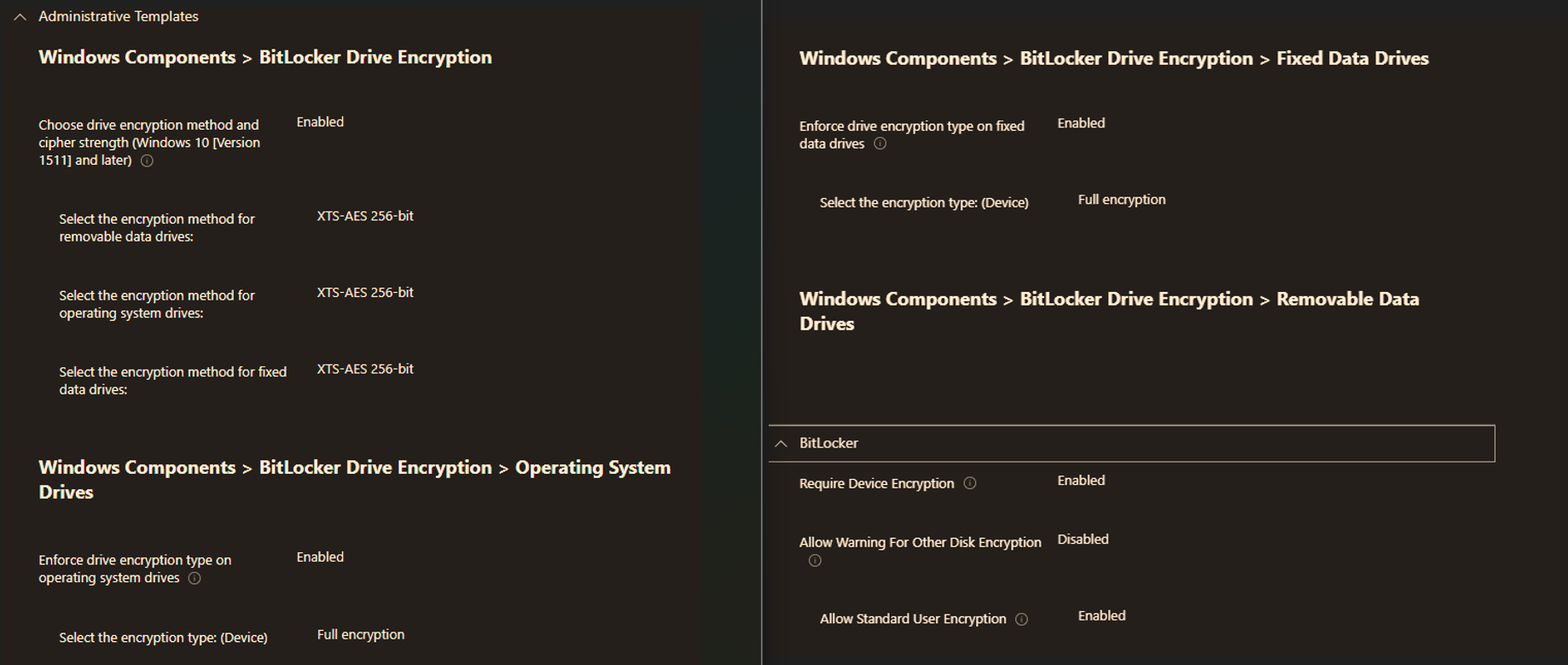

Intune Policy Configuration

Click the image below to view the full-resolution policy settings:

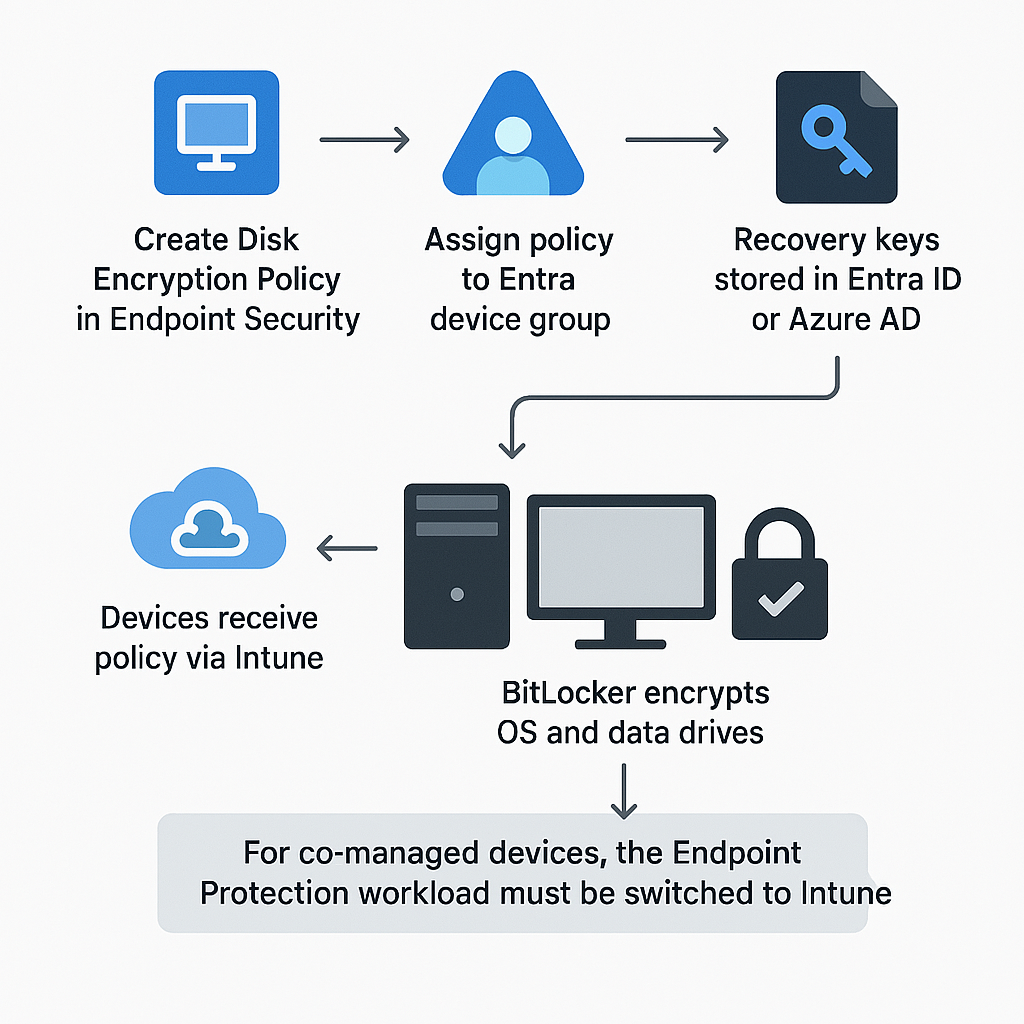

Automation Flow Diagram

This diagram illustrates the BitLocker deployment process via Intune:

Impact
